Python API

You can use polarityjam within python to do your analysis. A good tool to get an impression for the data you are about to analyse is jupyter notebook https://jupyter.org/). Paired with python micromamba and conda-forge it is a powerful option. The following will show how to use polarityjam in a python shell, or preferably in a jupyter notebook. What follows is an example of such a notebook. It can be found here!

Lets first look at the API. There is four major parts to it: - Parameter - Segmentation - Extraction - Visualization

We will walk you through each of them in here. First, familiarize with the API structure.

# must run in an environment where polarityJaM is installed
from polarityjam import Extractor, Plotter, PropertiesCollection
from polarityjam import RuntimeParameter, PlotParameter, SegmentationParameter, ImageParameter, SegmentationMode
from polarityjam import PolarityJamLogger
from polarityjam import load_segmenter
from polarityjam.utils.io import read_image

from pathlib import Path

# Setup a logger to only report WARNINGS, Put "INFO" or "DEBUG" to get more information
plog = PolarityJamLogger("WARNING")

Parameter

First, lets setup the data we want to use and the parameters describing what we want to do. You find the images in our example dataset that are part of Polarity-JaM. Here is the link to the example data! Simply extract the zip and have it in the same directory as this notebook.

### ADAPT ME ###
path_root = Path("")
input_file = path_root.joinpath("data/golgi_nuclei/set_2/060721_EGM2_18dyn_02.tif")
output_path = path_root.joinpath("polarityjam_out/")
output_file_prefix = "060721_EGM2_18dyn_02"
### ADAPT ME ###

An image can be read in and needs to be further specified which channels hold what kind of information. For that the ImageParameter class should be used.

# read input
img = read_image(input_file)

# describe your image with ImageParameter
params_image = ImageParameter()

# set the channels
params_image.channel_organelle = 0  # golgi channel
params_image.channel_nucleus = 2
params_image.channel_junction = 3
params_image.channel_expression_marker = 3
params_image.pixel_to_micron_ratio = 2.4089

print(params_image)

ImageParameter:
channel_junction              3
channel_nucleus               2
channel_organelle             0
channel_expression_marker     3
pixel_to_micron_ratio         2.4089

Other parameters that should now be specified are RuntimeParameter, PlotParameter.

# define other parameters, use default values
params_runtime = RuntimeParameter()
params_plot = PlotParameter()

Let’s look at our parameter default values:

print(params_runtime)
print(params_plot)

RuntimeParameter:
extract_group_features        False
membrane_thickness            5
junction_threshold            -1
feature_of_interest           cell_area
min_cell_size                 50
min_nucleus_size              10
min_organelle_size            10
dp_epsilon                    5
cue_direction                 0
connection_graph              True
segmentation_algorithm        CellposeSegmenter
remove_small_objects_size     10
clear_border                  True
save_sc_image                 False
keyfile_condition_cols        ['short_name']

PlotParameter:
plot_junctions                True
plot_polarity                 True
plot_elongation               True
plot_circularity              True
plot_marker                   True
plot_ratio_method             True
plot_shape_orientation        True
plot_foi                      True
plot_sc_image                 False
plot_threshold_masks          None
plot_sc_partitions            False
show_statistics               False
show_polarity_angles          True
show_graphics_axis            False
show_scalebar                 True
outline_width                 2
length_scalebar_microns       20.0
graphics_output_format        ['png']
dpi                           300
graphics_width                5
graphics_height               5
membrane_thickness            5
fontsize_text_annotations     6
font_color                    w
marker_size                   2
alpha                         0.7
alpha_cell_outline            1.0

Changing an of these is easy - and can be done as shown below:

# change some parameters
params_runtime.membrane_thickness = 6
params_runtime.min_organelle_size = 9

to see all possible parameters and what values they can take see the Usage section of the documentation.

All parameters from single file

Because there are a lot of parameters to set, we can also load all parameters from a single file. For every parameter that is not content of this file the default value is automatically taken. The code would look like this:

Note

Order of your notebook cells matters! Parameters defined in previous cells could be overwritten by the parameters defined in the yml-file.

### CHANGE ME ###
path_to_yml = "/path/to/your/yml/file.yml"
### CHANGE ME ###

params_image = ImageParameter.from_yml(path_to_yml)
params_runtime = RuntimeParameter.from_yml(path_to_yml)
params_plot = PlotParameter.from_yml(path_to_yml)
params_seg = SegmentationParameter.from_yml(path_to_yml)  # default segmentation algorithm is used if not specified in yml

Segmentation

Before features can be extracted the image must be segmented. A segmentation procedure in polarityJaM consists of two steps. First, the image is prepared for segmentation. Second, the segmentation algorithm is applied to the prepared image.

You can specify the segmentation algorithm in the RuntimeParameter. Here, you can change the value of segmentation_algorithm if you want to use a different algorithm. Default value is CellposeSegmenter and hence the cellpose segmentation algorithm will be used.

print("Used algorithm for segmentation: %s " % params_runtime.segmentation_algorithm)

Used algorithm for segmentation: CellposeSegmenter

# Now define your segmenter and segment your image with the default algorithm and default parameters.
cellpose_segmentation, _ = load_segmenter(params_runtime)

# prepare your image for segmentation
img_prepared, img_prepared_params = cellpose_segmentation.prepare(img, params_image)

# Define a plotter and check your for segmentation prepared image
plotter = Plotter(params_plot)

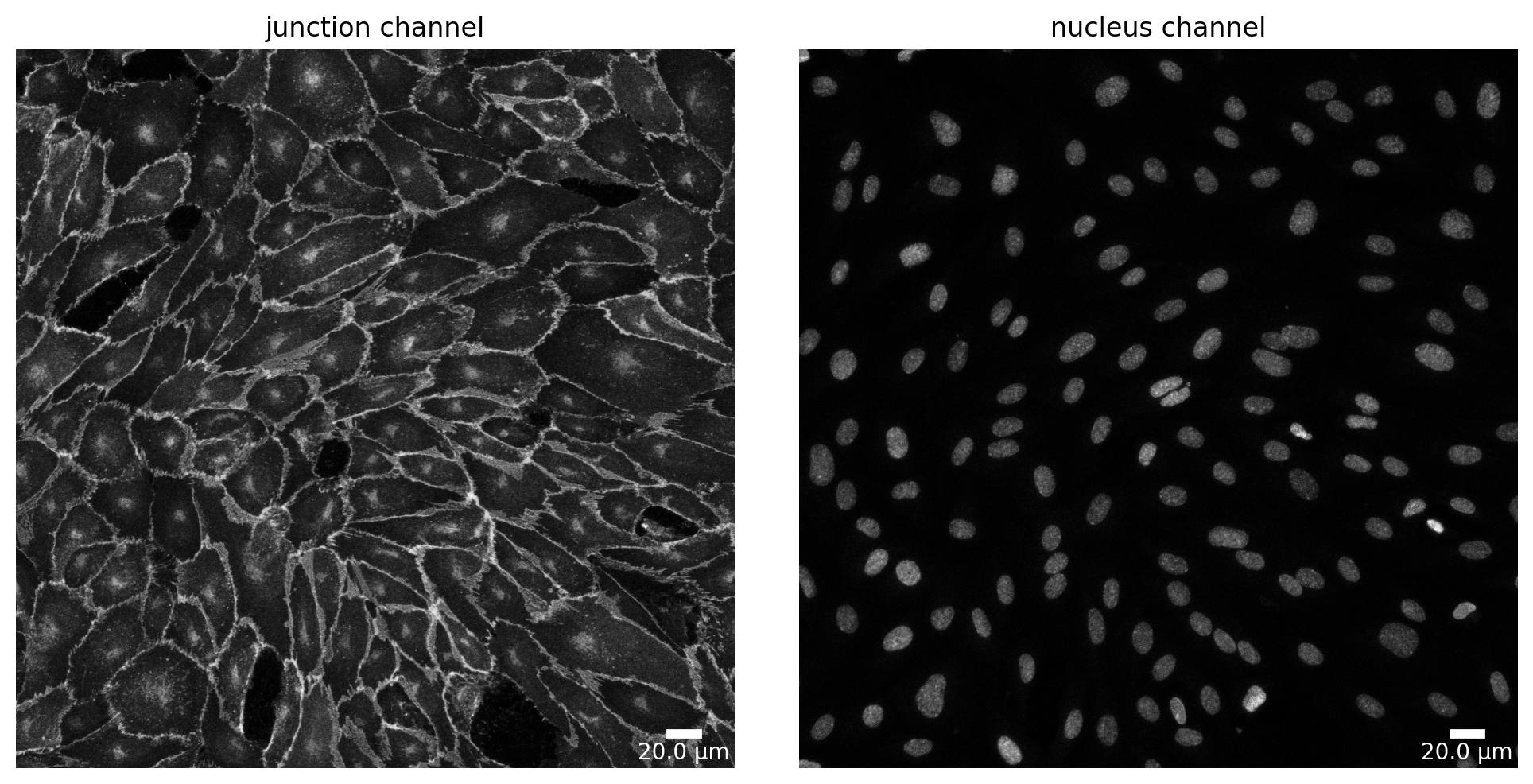

# plot input
plotter.plot_channels(img_prepared, img_prepared_params, output_path, input_file);

# now segment your prepared image to get the masks
mask = cellpose_segmentation.segment(img_prepared, input_file)

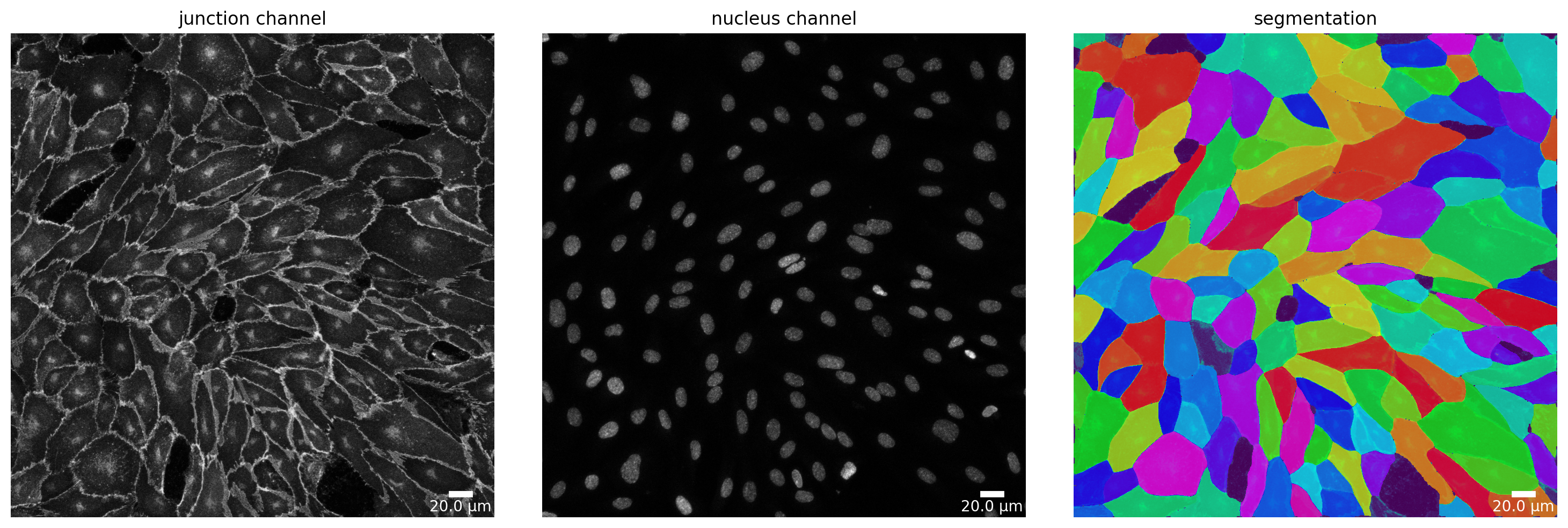

# plot segmentation mask to check the quality
plotter.plot_mask(mask, img_prepared, img_prepared_params, output_path, output_file_prefix);

Change segmentation parameters

To specify the parameters of the segmentation algorithm, you can use the SegmentationParameter class. But if not defined otherwise, the segmentation algorithm is used with its default parameters. Parameter that are of no use for the segmentation algorithm are ignored during segmentation, but no error is thrown. Make sure to check the parameters of the segmentation algorithm you are using.

# define your segmentation parameters by starting with the default parameters
cellpose_parameter = SegmentationParameter(params_runtime.segmentation_algorithm)

# change specific parameters
cellpose_parameter.estimated_cell_diameter = 300

print(cellpose_parameter)

SegmentationParameter:
path                          cellpose.CellposeSegmenter
channel_cell_segmentation
channel_nuclei_segmentation
manually_annotated_mask
store_segmentation            False
use_given_mask                True
model_type                    cyto
model_type_nucleus            nuclei
model_path
estimated_cell_diameter       300
estimated_nucleus_diameter    30
flow_threshold                0.4
cellprob_threshold            0.0
use_gpu                       False
niter                         0

# now lets load the segmenter with the new parameters
cellpose_segmentation_altered_params, _ = load_segmenter(params_runtime, cellpose_parameter)

# using this `cellpose_segmentation_altered_params` to prepare your image and segment it would now use the altered parameters!
# img_prepared_altered, _ = cellpose_segmentation_altered_params.prepare(img, params_image)
# mask_altered = cellpose_segmentation.segment(img_prepared_altered, input_file)

Change segmentation algorithm

You might notice that the segmentation algorithm you are using performs poor on your data. Try different segmentation algorithms to find the one that works best for you.

For a list of included segmentation algorithms please look at the Usage page of the documentation.

We now show you how you can change the segmentation algorithm:

Note

Different segmentation algorithms might need different parameters. Make sure to check the parameters of the segmentation algorithm you are using.

params_runtime.segmentation_algorithm = "DeepCellSegmenter"

deepcell_segmenter_parameters = SegmentationParameter(params_runtime.segmentation_algorithm)
deepcell_segmenter_parameters.segmentation_mode = "nuclear"

print(deepcell_segmenter_parameters)

SegmentationParameter:
path                          deepcell.DeepCellSegmenter
channel_cell_segmentation
channel_nuclei_segmentation
segmentation_mode             nuclear
save_mask                     False
maxima_threshold              0.18
maxima_smooth                 0.1
interior_threshold            0.1
interior_smooth               0.2
small_objects_threshold       25.0
fill_holes_threshold          5.0
radius                        20.0
pixel_expansion               0

We changed the segmentation algorithm to DeepCell and the mode to “nuclear” to get a nucleus segmentation instead of a whole cell segmentation since Cellpose does already a great job. Next steps are now analog to segmenting cells: prepare and segment your image!

Note

When you use a new segmentation algorithm for the first time, it needs to be installed. This can take a while. Please be patient.

### This might take a while ###
deepcell_segmentation, _ = load_segmenter(params_runtime, deepcell_segmenter_parameters)

# again, prepare your image for segmentation
img_prepared_deepcell, img_prepared_deepcell_params = deepcell_segmentation.prepare(img, params_image)

# again, segment your prepared image to get the nucleus instance masks - this time using the DeepCellSegmenter and SegmentationMode NUCLEUS
mask_deepcell = deepcell_segmentation.segment(img_prepared_deepcell, mode=SegmentationMode.NUCLEUS);

### This might take a while ###

17:57:42 INFO

Solution credits:

Noah F. Greenwald and Geneva Miller and Erick Moen and Alex Kong and Adam Kagel and Thomas Dougherty and Christine Camacho Fullaway and Brianna J. McIntosh and Ke Xuan Leow and Morgan Sarah Schwartz and Cole Pavelchek and Sunny Cui and Isabella Camplisson and Omer Bar-Tal and Jaiveer Singh and Mara Fong and Gautam Chaudhry and Zion Abraham and Jackson Moseley and Shiri Warshawsky and Erin Soon and Shirley Greenbaum and Tyler Risom and Travis Hollmann and Sean C. Bendall and Leeat Keren and William Graf and Michael Angelo and David Van Valen; Whole-cell segmentation of tissue images with human-level performance using large-scale data annotation and deep learning (DOI: https://doi.org/10.1038/s41587-021-01094-0)


17:57:42 INFO    ~ Starting DeepCell-predict
17:57:49 INFO    ~ 2024-10-02 17:57:49.949887: E tensorflow/stream_executor/cuda/cuda_driver.cc:271] failed call to cuInit: CUDA_ERROR_NO_DEVICE: no CUDA-capable device is detected
17:57:49 INFO    ~ 2024-10-02 17:57:49.949921: I tensorflow/stream_executor/cuda/cuda_diagnostics.cc:156] kernel driver does not appear to be running on this host (Veiovis): /proc/driver/nvidia/version does not exist
17:57:49 INFO    ~ 2024-10-02 17:57:49.950558: I tensorflow/core/platform/cpu_feature_guard.cc:151] This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations:  AVX2 AVX512F FMA
17:57:49 INFO    ~ To enable them in other operations, rebuild TensorFlow with the appropriate compiler flags.
17:57:54 INFO    ~ WARNING:tensorflow:No training configuration found in save file, so the model was *not* compiled. Compile it manually.
17:57:54 INFO    ~ Image resolution the network was trained on: 0.5 microns per pixel
17:58:01 INFO    ~ Recent segmentation saved to: /tmp/tmpadgmtxxt/segmentation_segmentation
17:58:01 INFO    ~ Finished DeepCell-predict

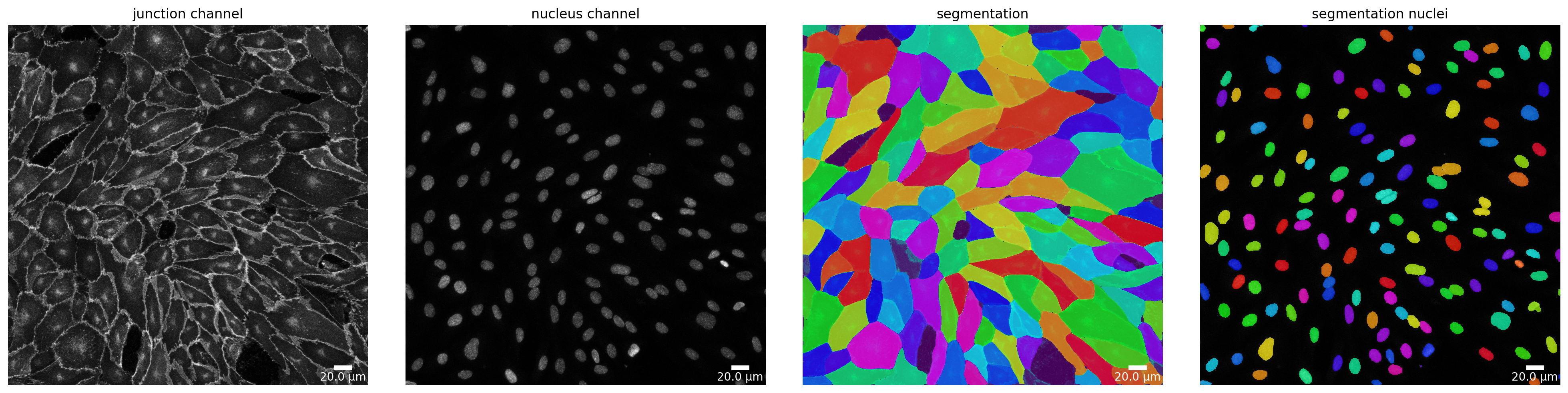

# plot segmentation mask to check the quality
plotter.plot_mask(mask, img_prepared_deepcell, img_prepared_deepcell_params, output_path, output_file_prefix, mask_nuclei=mask_deepcell);

Feature extraction

Use the Extractor class to extract the features from your segmentation. Please provide the original image and not the image that is created in the preparation step of the segmentation.

# feature extraction
collection = PropertiesCollection()
extractor = Extractor(params_runtime)
extractor.extract(img, params_image, mask, output_file_prefix, output_path, collection, segmentation_mask_nuclei=mask_deepcell);

collection.dataset.head()

	filename	img_hash	label	cell_X	cell_Y	cell_shape_orientation_rad	cell_shape_orientation_deg	cell_major_axis_length	cell_minor_axis_length	cell_eccentricity	...	junction_perimeter	junction_protein_area	junction_mean_expression	junction_protein_intensity	junction_interface_linearity_index	junction_interface_occupancy	junction_intensity_per_interface_area	junction_cluster_density	junction_cue_directional_intensity_ratio	junction_cue_axial_intensity_ratio
1	060721_EGM2_18dyn_02	363944ca78d06717742fe4dbe142e026e325f48d	11.0	720.508294	45.513774	3.124644	179.028931	147.191605	60.249653	0.912387	...	362.450793	2295.0	324.822479	1.036445e+06	1.055778	0.591342	267.056168	451.610016	0.109940	0.541296
2	060721_EGM2_18dyn_02	363944ca78d06717742fe4dbe142e026e325f48d	12.0	58.043105	55.697915	3.113451	178.387603	98.194399	77.941589	0.608247	...	316.977705	1789.0	247.426178	6.332390e+05	1.075794	0.553699	195.988552	353.962555	-0.286112	0.552466
3	060721_EGM2_18dyn_02	363944ca78d06717742fe4dbe142e026e325f48d	13.0	619.535898	69.791661	2.815969	161.343146	102.410029	88.514931	0.502944	...	337.912734	2077.0	265.672974	7.358640e+05	1.074227	0.605893	214.662784	354.291779	-0.143966	0.389721
4	060721_EGM2_18dyn_02	363944ca78d06717742fe4dbe142e026e325f48d	14.0	176.616147	104.956727	0.408647	23.413770	185.249457	143.634939	0.631520	...	610.955411	2475.0	227.133942	1.009919e+06	1.078673	0.400356	163.364451	408.048096	-0.256154	0.512461
5	060721_EGM2_18dyn_02	363944ca78d06717742fe4dbe142e026e325f48d	15.0	823.013250	71.744770	2.500474	143.266594	72.316774	51.889923	0.696521	...	216.409163	1772.0	397.937958	8.082580e+05	1.075565	0.796763	363.425354	456.127533	0.001117	0.538330

5 rows × 66 columns

collection.dataset.to_csv(output_path.joinpath('features.csv'))

Visualization

At each point in the analysis process visualization is necessary for quality control! Use the Plotter class to look at processing steps.

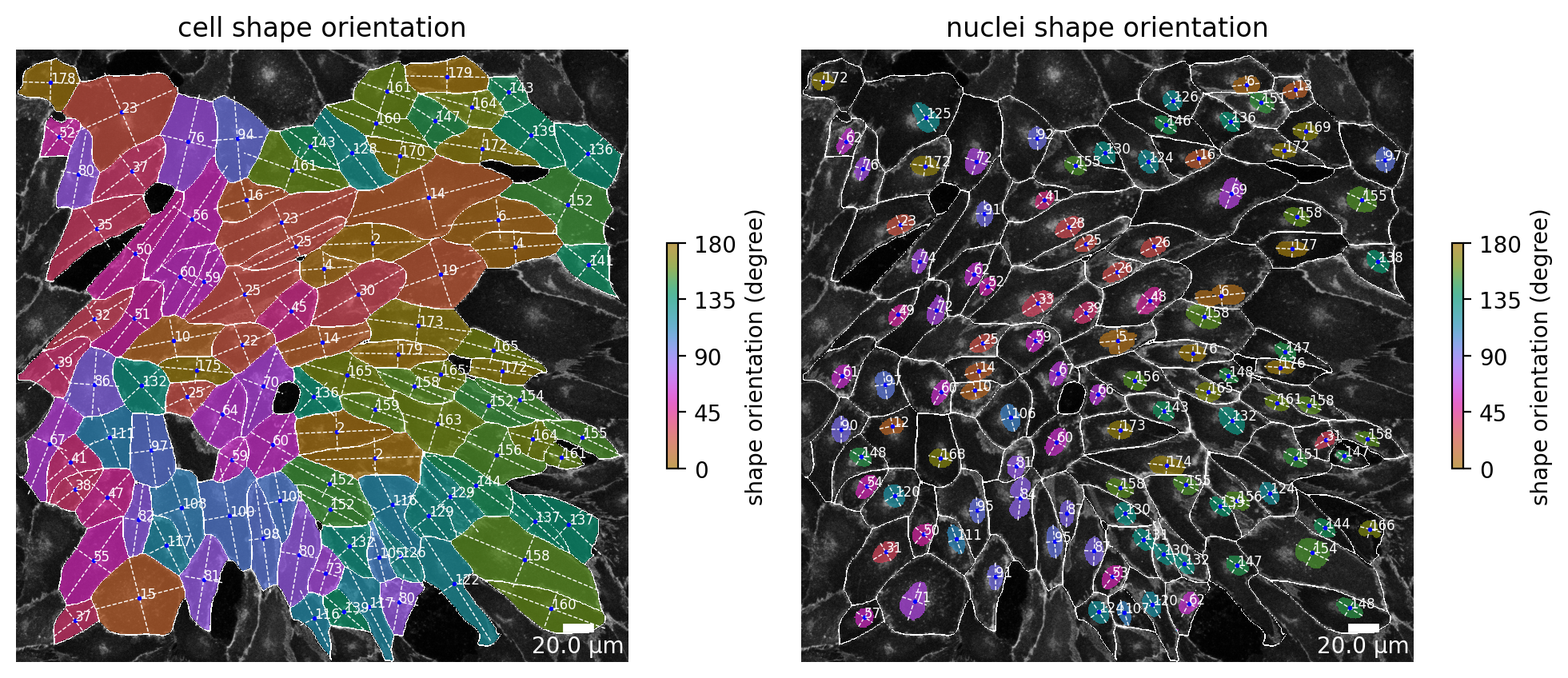

# plot the cell orientation of a specific image in your collection
plotter.plot_shape_orientation(collection, "060721_EGM2_18dyn_02");  # image is automatically saved in output_path

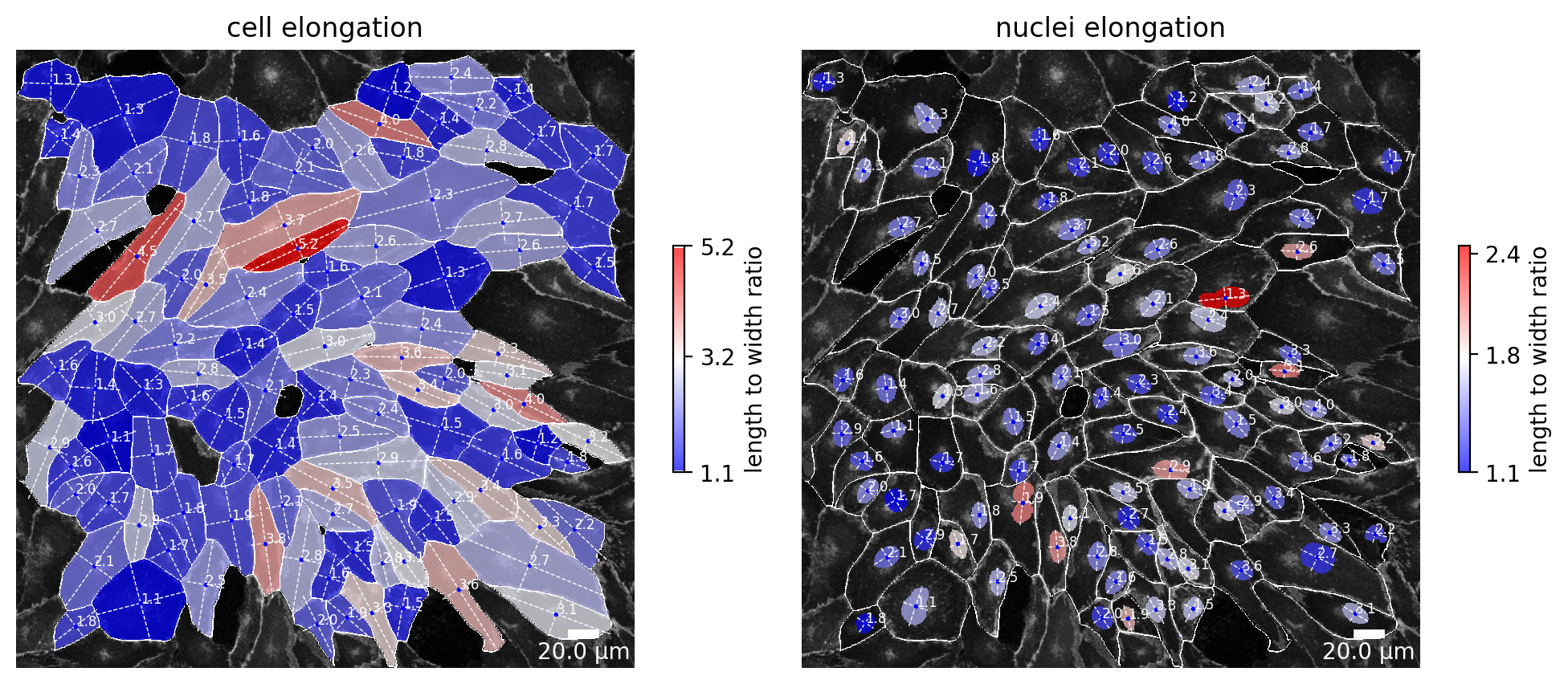

plotter.plot_length_to_width_ratio(collection, "060721_EGM2_18dyn_02");

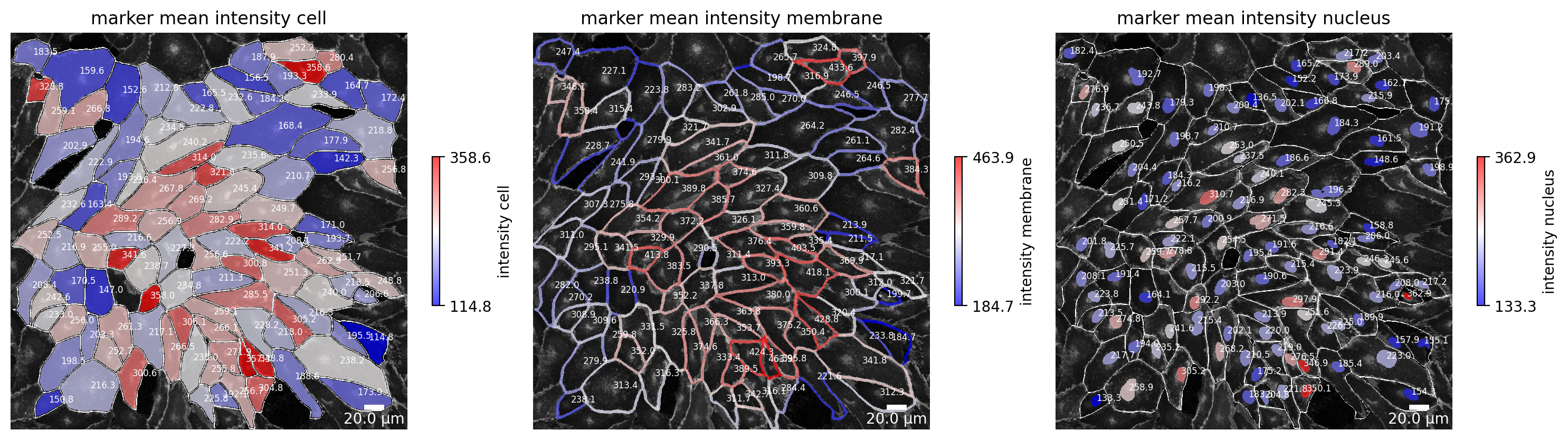

plotter.plot_marker_expression(collection, "060721_EGM2_18dyn_02");

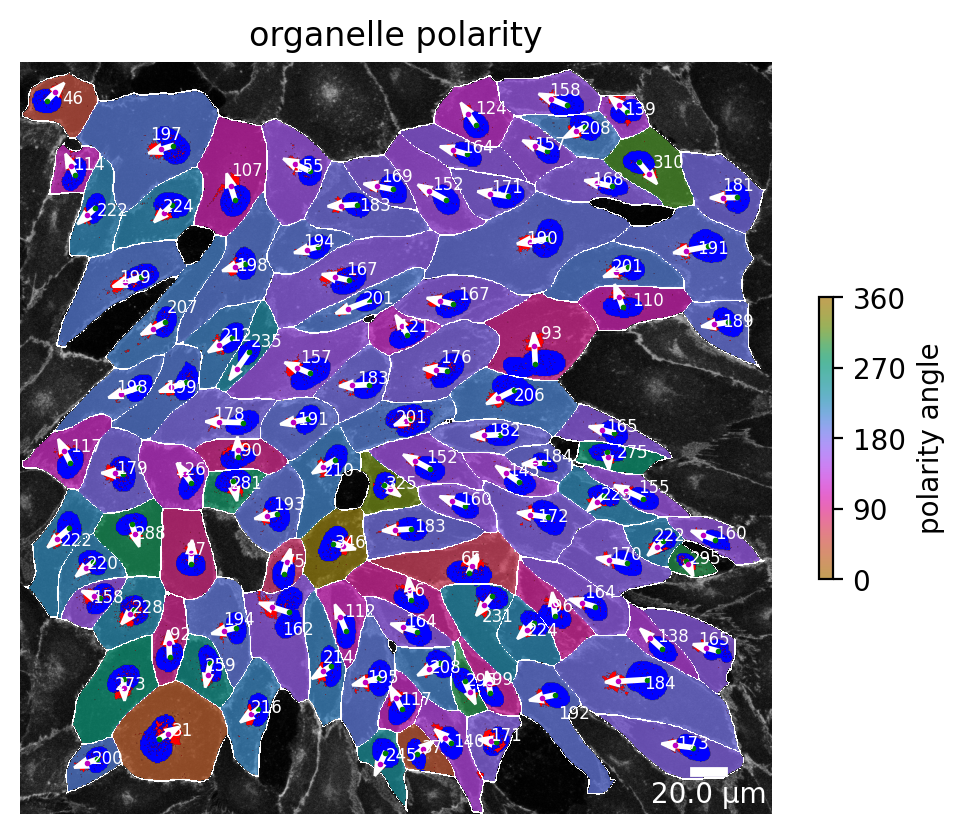

plotter.plot_organelle_polarity(collection, "060721_EGM2_18dyn_02");

Or simply plot the whole collection!

Note

This produces several plots for each image in the collection! Runtime can be high!

# or simply plot the whole collection
plotter.plot_collection(collection);

# Output omitted, see Visualization section of the documentation for an overview of the available plots
